Creo Expert Moldbase:
Indispensable Add-on Tool for Moldmakers and Toolmakers!
The greatest challenge facing manufacturing engineers today is finding time to improve quality, speed, and innovation in moldbase design and detailing. The solution that the world’s most successful moldmakers turn to is PTC Creo Expert Moldbase Extension (EMX).
PTC Creo EMX is an indispensable add-on tool for moldmakers and toolmakers that eliminates timeconsuming, tedious tasks and the need for data translation that typically slows down the product development process.
If you’re looking to accelerate moldbase design and find more time to development better quality, highly innovative designs, then this is your perfect solution. Put Creo Expert Moldbase to work for you.
-
OPTIMAL DESIGN
OPTIMAL DESIGN

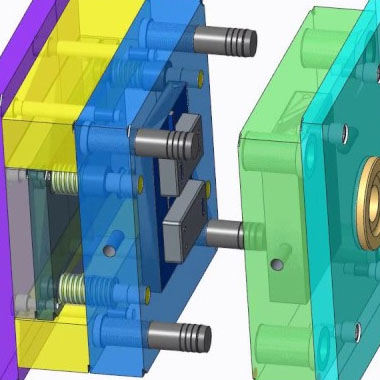

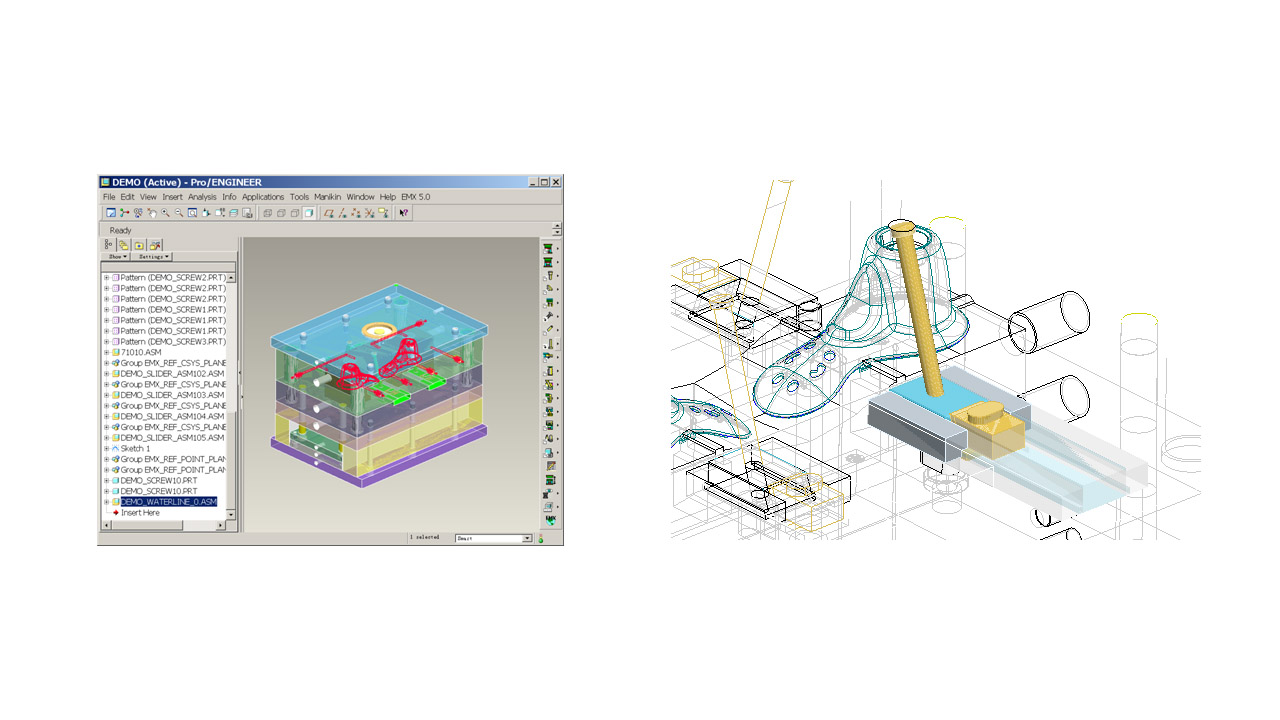

Create moldbase layouts in a familiar 2D environment and automatically generate a 3D model to leverage the benefits of 3D design. The 2D process-driven GUI guides you toward your optimal design and updates automatically during the development of the moldbase. The resulting 3D models are then used for interference checking during mold opening.
-
UNIQUE INTERFACE
UNIQUE INTERFACE

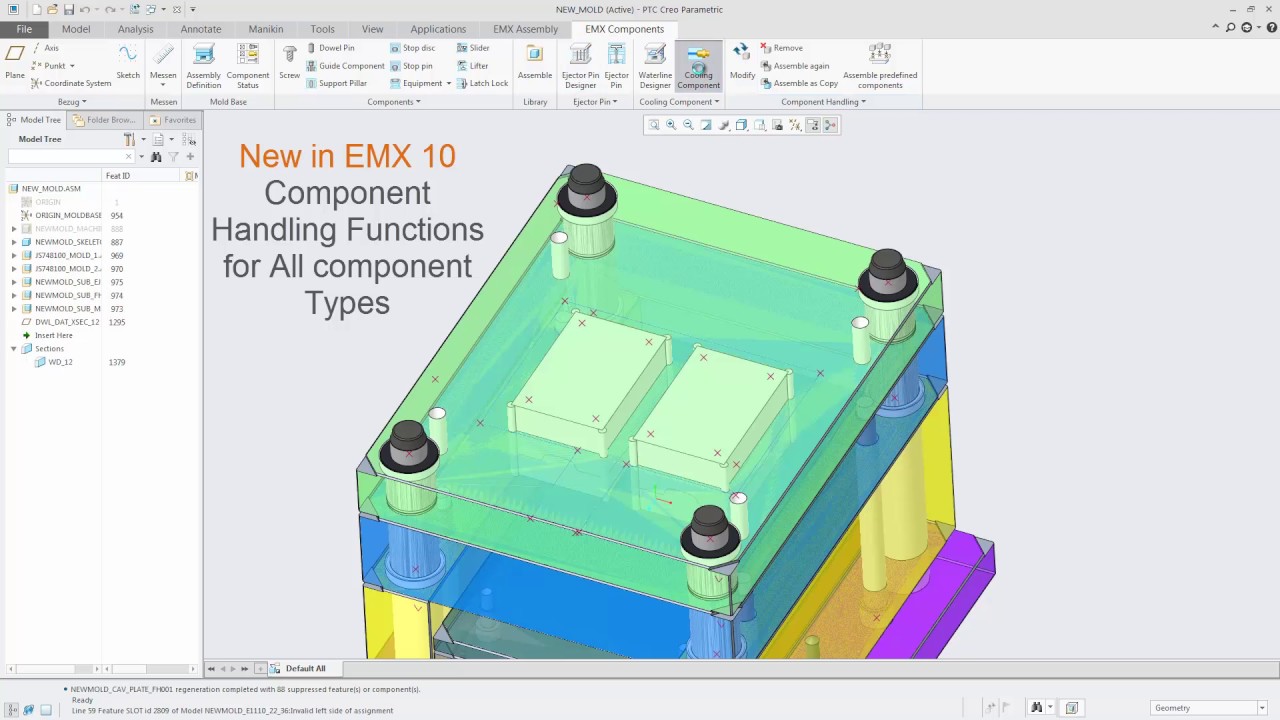

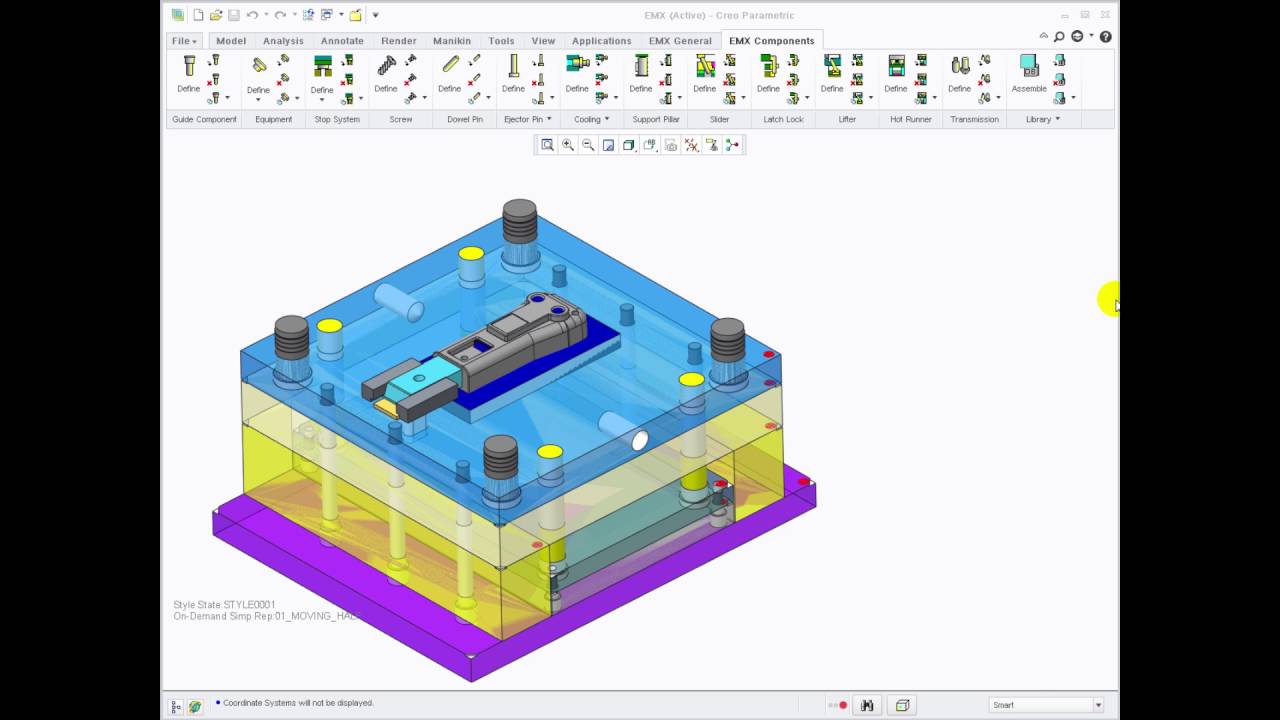

PTC Creo EMX increases design speed because the unique graphical interface gives you quick, real-time previewing before the 3D component or assembly is automatically placed. Once your components are placed, operations such as clearance cuts and drilled and tapped holes are automatically created in the appropriate neighboring plates and components.
-
WELL DOCUMENTED
Features
Creo Expert Moldbase - Simplified Moldbase Design
Images & Videos

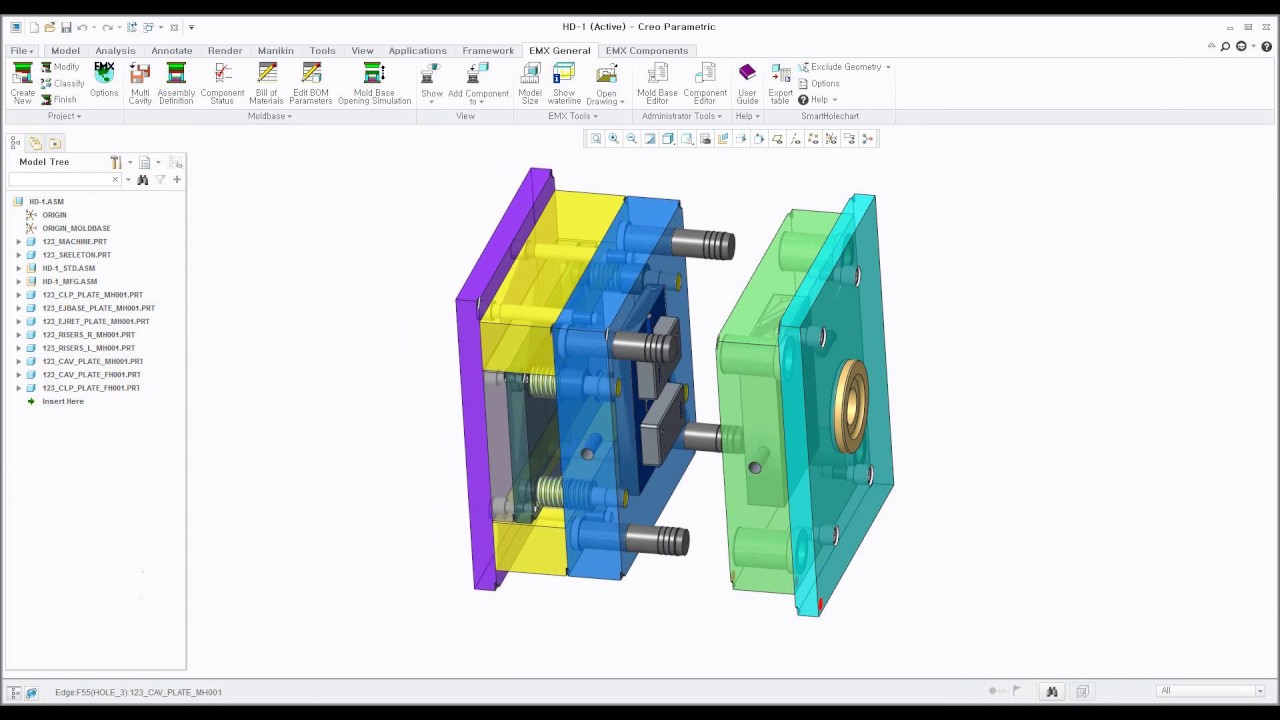

Design Using Creo Expert Moldbase
Select Category
-
Speed DesignSpeed design through simple, process-driven workflows to automated moldbase design and detailing.
-
LibrariesIncludes libraries for 17 moldbase/component suppliers (e.g., screws, ejector pins, sliders, cooling fittings).
-
FunctionalityAutomatic ejector pin, waterline, and fittings functions, automated runners and waterline checks.
-
Reduce Cycle TimePrevents costly rework and reduces cycle time by eliminating mistakes, via a 3D environment.
-
Automatically UpdateReduces the need for redesigns by automatically updating tooling models, drawings and electrodes.
-
-
-
-
-
